Low-e Insulated Glass

LOW-E glass, also known as Low-Emissivity glass, is obtained by coating the surface of the glass to reduce its emissivity from 0.84 to below 0.15. It can effectively block far-infrared thermal radiation energy and limit direct solar radiation energy as needed. This type of glass has the characteristics of low surface emissivity, low heat absorption and release, high infrared reflectance, moderate reflected thermal radiation and visible light transmittance, and control of direct solar radiation

Product Details







Product Name
COSMOS Low-E Glass
Thickness
18mm-24mm
Further process types
Cutting, Toughened, Insulated, etc.
Types
Single Silver Low-e, Double Silver Low-e, etc.
Property
Power saving, Eco-friendly, Cool-summer and Warm-winter

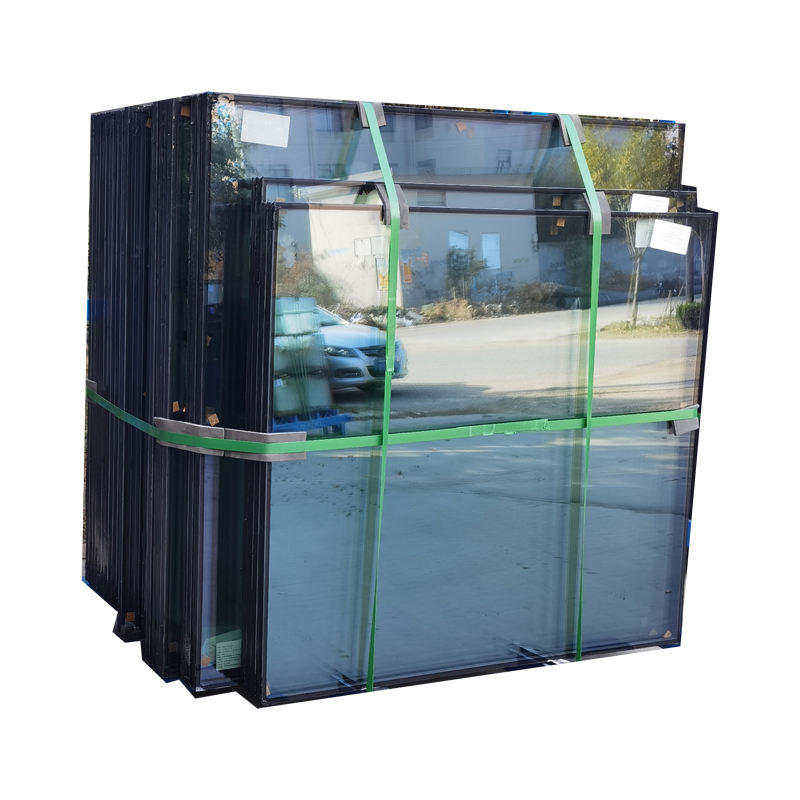

Packing
Sea worthy wooden crate with interlayer paper or powder
Delivery Time
It depends the quantity, normally 15-45days
Applications
Architectural door, window, ceiling, curtain wall, etc.



Product Characteristics





Product Parameter


Soft Low-E Glass

VLT%
(Single Sheet)

VLT%(IGU)

U - Value
(Single Sheet)
U - Value
(IGU - 16A)

Emissivity
(After Tem.)
Air
Argon
S1.16
89
82
2.40
1.44
1.16
0.067
S1.1 Plus
88
81
2.28
1.38
1.10
0.035
D80
80
73
2.25
1.34
1.08
0.03
Solarban
75
70
2.18
1.29
1.02
0.02


Products Configuration
Visible Light
U - Value
(w/m2.k)

SHGC

Tvis%
Rvis%
Out
In
Air
Argon
3mm S1.16 + 12A + 3mm clear
82
13
13
1.71
1.40
0.61
3mm S1.1 Plus + 12A + 3mm clear
81
15
14
1.64
1.32
0.56
3mm S1.16 + 16A + 3mm clear
82
13
13
1.45
1.20
0.61
3mm S1.1 Plus + 16A + 3mm clear
81
15
14
1.38
1.10
0.56
4mm S1.16 + 12A + 4mm clear
80
14
14
1.71
1.42
0.60
4mm S1.1 Plus + 12A + 4mm clear
80
15
15
1.64
1.33
0.56
4mm S1.16 + 16A + 4mm clear
80
14
14
1.47
1.22
0.65
4mm S1.1 Plus + 16A + 4mm clear
80
15
15
1.39
1.10
0.65
